Experienced DIYers with small, rectangular yards can absolutely tackle this. But if you're working with a large or irregularly shaped lot, hiring a licensed irrigation contractor often saves time, money, and headaches.
Poor installation causes real problems: leaks, uneven coverage, backflow code violations, wasted water, and expensive rework. This guide walks through the complete process step-by-step, and flags exactly when it's time to call in a pro.
TL;DR
- Professional crews finish in 1-2 days; DIYers should budget 1-3 weekends depending on yard size
- Call 811 first, then check water pressure (40-60 PSI) and flow before mapping zones
- Install scope: trenching, piping, valves, backflow preventer, sprinkler heads, and controller wiring
- Flushing lines and verifying backflow function are critical final steps
- Unsure about permits or backflow codes? Compare quotes from vetted local contractors before you dig
Installation Guide for a Sprinkler System

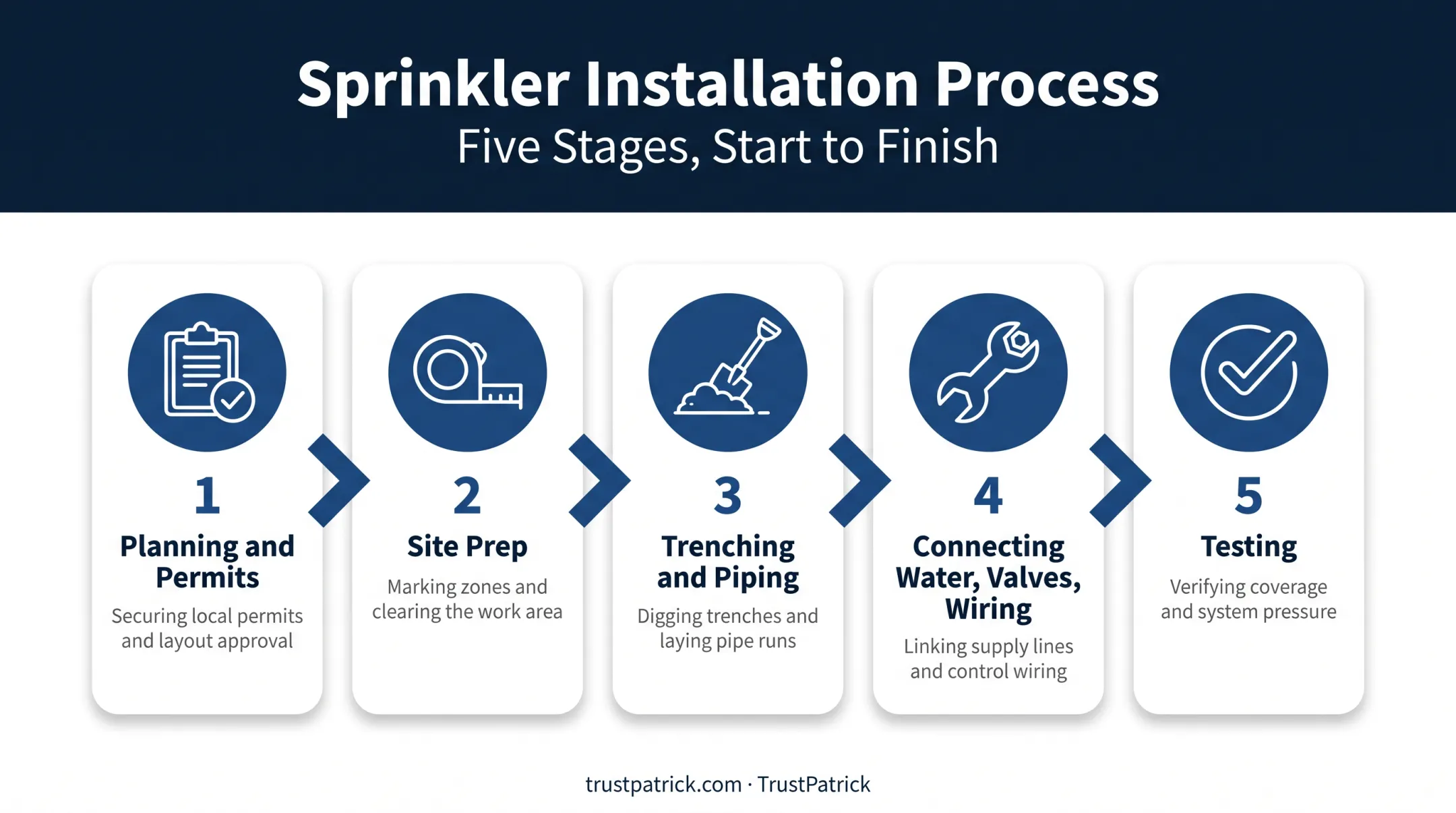

The process follows five broad phases:
- Planning and permits
- Site prep
- Trenching and piping
- Connecting water, valves, and wiring
- Testing
A small yard might take a single weekend. Larger or oddly shaped properties can stretch to 1-3 weeks for a DIYer. A professional crew with proper equipment typically finishes in about a day or two, even on larger lawns. If you prefer that route, TrustPatrick can match you with vetted local irrigation contractors so you can compare options.
Prerequisites and Safety Considerations
Before touching a shovel, check your local permit requirements and HOA rules. Many jurisdictions require both an installation permit and a backflow inspection.
Call 811 before any digging. This is the free national utility-marking service, and it applies to every digging project regardless of depth. Request marking a few days in advance so gas, power, and cable lines get flagged.
Next, check your water source:
- Static water pressure: Most automatic systems need 40-60 PSI to function properly
- Flow rate (GPM): Measure with a 5-gallon bucket and stopwatch so you can size zones correctly
Non-negotiables before you start:
- Never dig without utility marking
- Never skip a required backflow preventer
- Never tie into city water without local code compliance
Tools and Parts Required
Essential parts:
- PVC (Schedule 40) or polyethylene pipe
- Sprinkler heads and nozzles
- Valves, valve manifold, and valve boxes
- Backflow preventer (code-required)
- Controller/timer
- Low-voltage sprinkler wire and waterproof connectors
- PVC primer and cement
Essential tools:
- Trenching shovel or rented trencher
- Pipe cutter
- Marking flags and stakes
- String line
- Pressure gauge
- Tape measure
Rigid PVC is more durable for main lines. Polyethylene pipe is flexible and holds up better in colder climates, but it isn't recommended for the main connecting line.

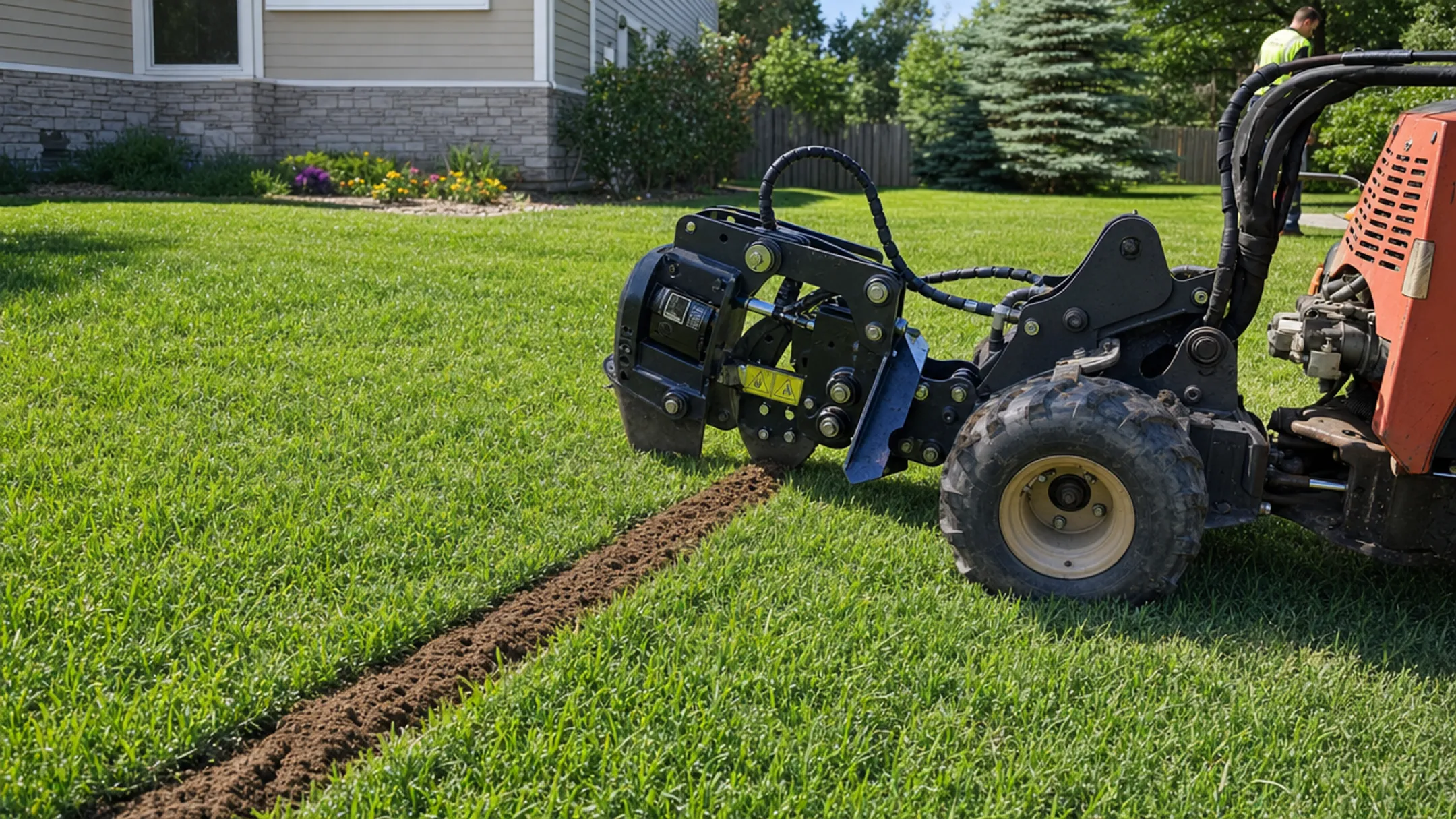

For larger yards, a vibratory plow can install pipe with far less lawn disruption than open trenching. In good soil, these machines can lay pipe at 30-35 feet per minute, and compact models fit through a standard 36-inch gate.
How to Install a Sprinkler System (Step-by-Step)
Skipping steps like flushing lines or backfilling properly is exactly how leaks and clogged heads show up weeks later. Work through each stage in order, and bring in a licensed pro for the water-main connection when local code requires it.
Preparing the Site
Sketch your yard and map irrigation zones based on plant type and sun exposure. Mark sprinkler head and pipe locations with flags, stakes, and string line before digging anything.
Digging Trenches
Follow your marked layout:
- Lateral lines: typically 6–12 inches deep
- Main line: around 10–12 inches deep
- Frost line: colder climates often need deeper burial; confirm local requirements before you dig
Laying Pipe and Installing Valves

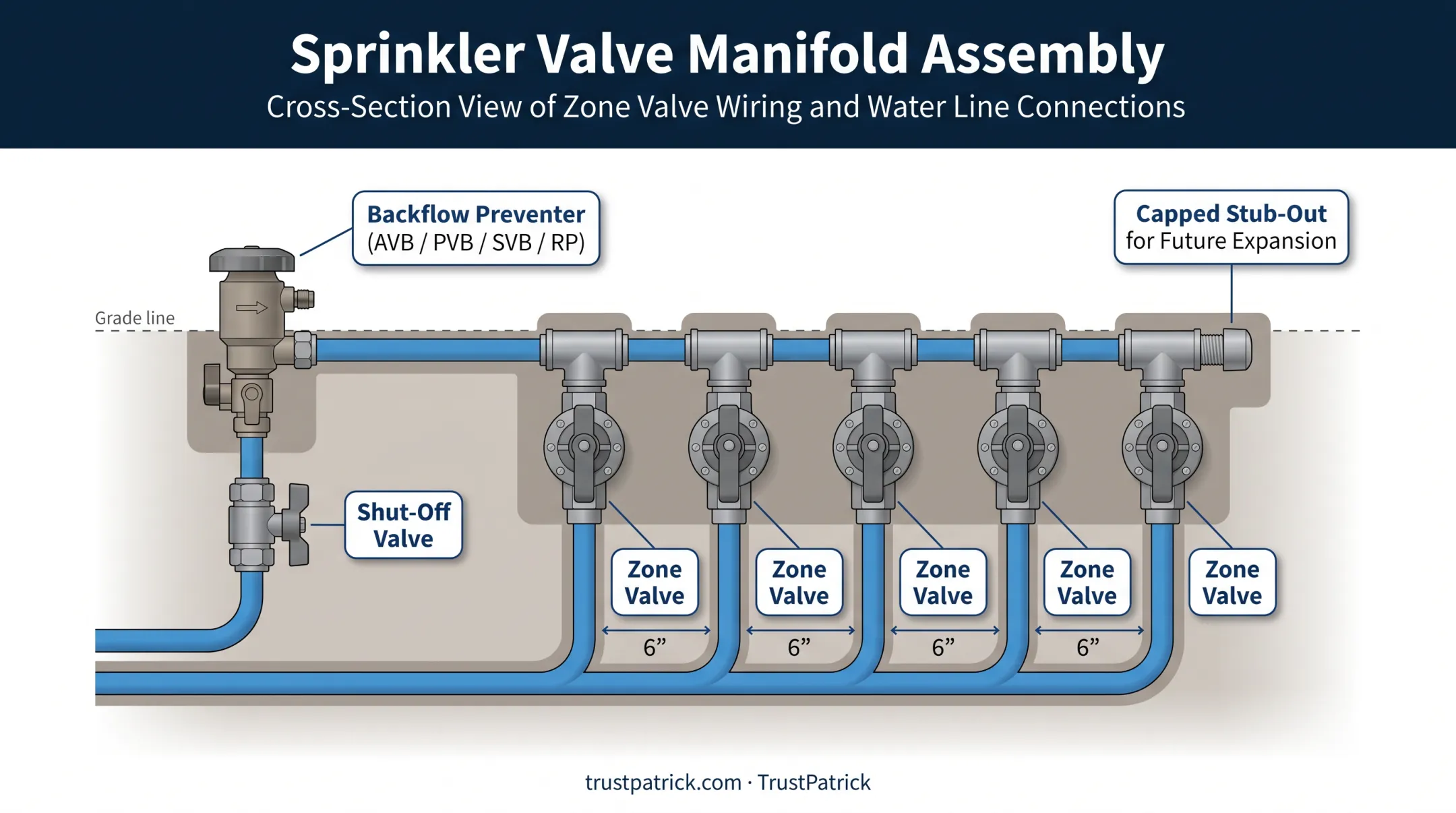

Shut off the water and tee into your main service line. Assemble the valve manifold and install the backflow preventer per local code (AVB, PVB, SVB, or RP, depending on your area). Many cities require a licensed plumber or irrigation contractor for this connection—do not cut the supply line until you know the rule. Work from the point of connection outward. Keep at least 6 inches between valves and leave a capped stub-out for future zone additions.
Connecting to Water Supply and Wiring the Controller
Link the manifold to the main line, then run valve wire back to the controller location. Use one wire per valve plus a shared common wire, joined with waterproof connectors. Mount the controller near a power source, ideally in a garage or covered area.
Attaching Sprinkler Heads and Flushing
Leave heads off initially. Manually flush each zone until water runs clean, then attach heads. This single step prevents most future nozzle clogs.
Backfilling and Final Checks
Run a full system test and fix any leaks before you close the trenches. Backfill in layers and tamp lightly so pipes stay seated, then adjust spray patterns and walk each zone for even coverage.

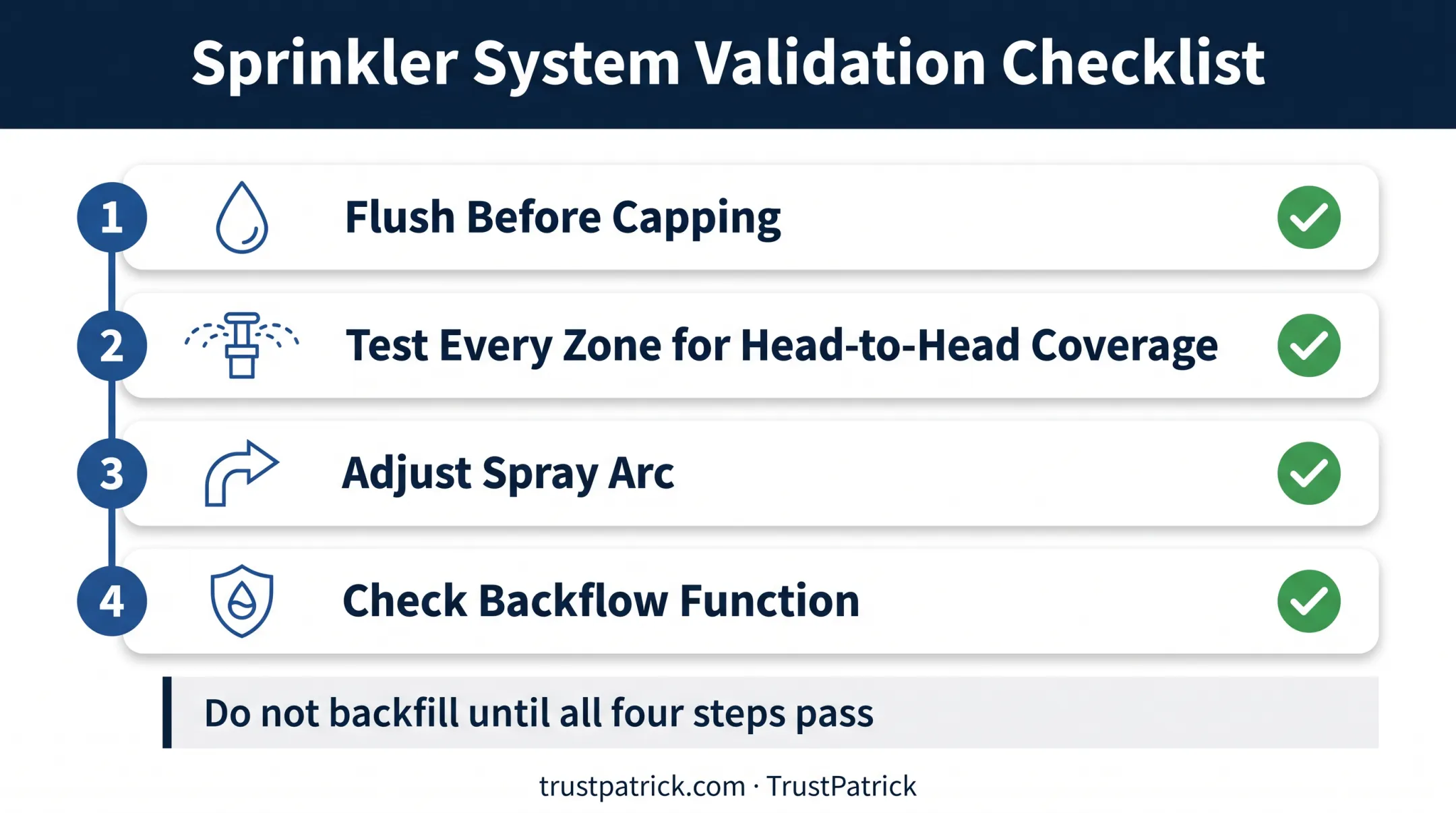

Post-Installation Checks and Validation
Don't skip this phase. Undetected leaks and dry patches usually surface weeks after installation, not immediately.
- Flush before capping: Run each zone with sprinkler heads removed until debris clears.
- Test every zone: Activate through the controller and watch for head-to-head coverage — each sprinkler's spray should reach the neighboring head.
- Adjust as needed: Fine-tune spray arc and direction for dry spots or overspray.
- Check backflow: Shut off water at the preventer and confirm no flow passes through.
Only backfill trenches once every zone tests correctly. If a zone fails coverage or backflow checks, fix it before you bury the lines.
Common Installation Problems and Fixes
Three issues show up most often during or right after installation.
Uneven Water Coverage
Problem: Dry patches or spray hitting the driveway instead of the lawn.
Likely cause: Incorrect head spacing or the wrong nozzle for that zone's radius.
Fix: Adjust the spray arc and radius, or add a head to close the gap.
Leaking Connections
Problem: Water pooling near joints once the system is pressurized.
Likely cause: Insufficient primer/cement, or pressurizing before the joint cured. Applying pressure too soon is a documented cause of joint failure. Cure times also stretch significantly in cold weather.
Fix: Redo the joint with proper primer, cement, and full cure time before repressurizing.
Backflow Preventer Failing Inspection
Problem: The local inspector flags a missing shut-off valve or incorrect device placement.
Likely cause: Not following current local plumbing code requirements for backflow protection.
Fix: Research updated local backflow codes, or consult a licensed plumber before installation begins.
If a repair won’t hold or the system keeps failing inspection, call a licensed irrigation or plumbing contractor rather than reworking the same joint or device again.
Pro Tips for Installing a Sprinkler System Effectively
- Dig and glue on cooler days. PVC cement sets faster in heat, so you get less working time and a higher risk of a rushed, weak joint.
- Leave extra wire in the trench. Spare capacity makes adding zones later far cheaper than re-trenching.
- Document zone assignments and valve locations. A simple sketch saves hours of guesswork on future maintenance.
- Get multiple quotes on large or oddly shaped yards. Side-by-side estimates catch pricing and scope gaps before they get expensive.
TrustPatrick matches homeowners with up to three pre-screened, background-checked irrigation contractors by ZIP code in under two minutes, with no obligation to hire. Compare those bids—and real homeowner reviews—before you commit.
Conclusion
Installation quality directly affects your water bill, lawn health, and how many service calls you'll make over the system's lifetime. A rushed job shows up later as dry patches, phantom leaks, or a failed inspection.
Plan carefully, follow your local codes, and test thoroughly before you call the job done. If the trenching, wiring, or permit work is more than you want to take on, TrustPatrick can connect you with vetted local irrigation contractors so you can compare up to three options—without spam or pressure.
Frequently Asked Questions
How much does sprinkler system installation cost?
Costs vary widely by yard size and system complexity, ranging roughly from $1,637 to $3,595 nationally for professional installation. Comparing a few local contractor estimates is the best way to pin down the range for your property.
Do plumbers install sprinkler systems?
Irrigation contractors typically handle full sprinkler system installation, not general plumbers. However, a licensed plumber may be required for the backflow preventer connection, depending on local code.
How deep should sprinkler lines be buried?
Lateral lines are typically buried 6-12 inches deep, with main lines around 10-12 inches. Depth varies by climate and local frost line requirements, so always check your local code first.
Do I need a permit to install a sprinkler system?
Many municipalities require a permit and a backflow inspection before you connect to the water supply. Requirements vary significantly by area, so check with your local building department before starting.
Can I install a sprinkler system myself?
DIY is realistic for smaller, rectangular yards if you're patient and plan carefully. Larger or irregularly shaped properties often benefit from professional installation to avoid costly rework.
How long does it take to install a sprinkler system?
Professional crews typically finish in 1-2 days. DIY installations usually take 1-3 weekends, depending on yard size and how much digging is involved.
