Choosing the right insulation material affects more than temperature. It controls moisture, keeps pests out, and directly shapes your energy costs. Many homeowners struggle with knowing where to even start.
This guide compares the best crawl space insulation materials, breaks down realistic costs, and explains how to find a contractor who won't cut corners.
TL;DR
- Spray foam, rigid foam board, and mineral wool perform best in crawl spaces; fiberglass struggles in damp conditions
- Moisture control matters more than R-value alone — insulation fails if the space isn't sealed properly
- Costs range from $1 to $5 per square foot depending on material and installation complexity
- The right material depends on whether your crawl space is vented or sealed, plus your local climate
- Comparing multiple vetted contractor quotes helps you avoid overpaying or getting pressured into the wrong system
What Is Crawl Space Insulation, Exactly?
Crawl space insulation is material installed on floor joists, foundation walls, or rim joists to slow heat transfer and manage moisture beneath your home. It's one part of a larger building system, not a standalone fix.
According to Department of Energy Building America research, unvented, conditioned crawl spaces can deliver 15% to 18% in heating and cooling energy savings compared to traditional vented setups.
That's a meaningful number for a part of the house most people never see. Let's look at which materials actually deliver on that promise.

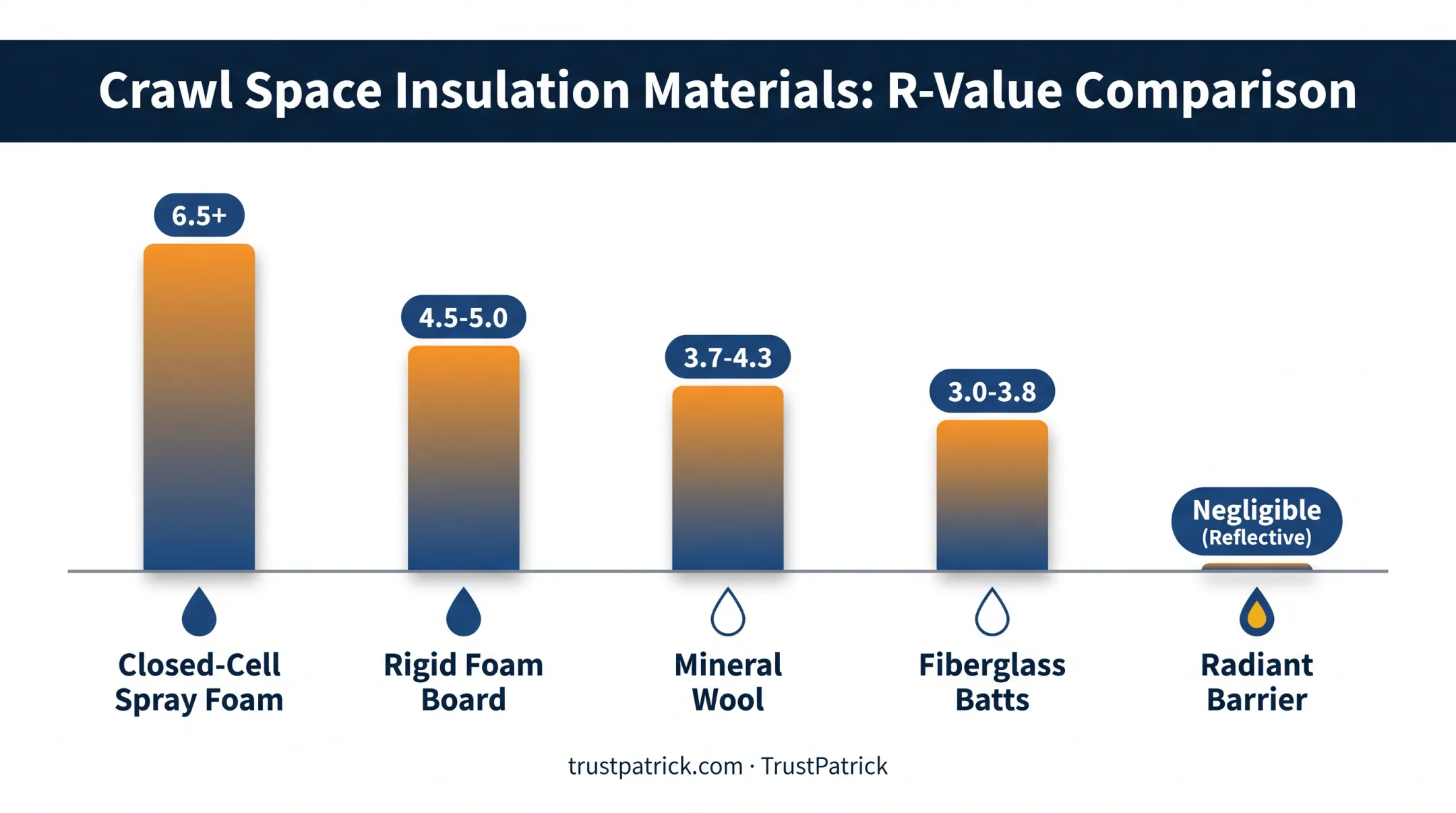

Best Crawl Space Insulation Materials
Evaluate materials on five factors: R-value, moisture resistance, pest resistance, cost, and ideal use case. The tables below compare R-value, moisture performance, and best fit; cost and pest notes sit in each write-up.
Closed-Cell Spray Foam
Closed-cell spray foam is a two-part polyurethane sprayed directly onto rim joists or foundation walls. It expands on contact, filling gaps and cracks that other materials simply can't reach.
This is why contractors favor it for sealed, encapsulated crawl spaces. It functions as insulation and an air barrier in one step. Installed cost runs higher than batts or rigid board, and the dense foam leaves little room for pests to nest.
| R-Value per Inch | Moisture Resistance | Best Use Case |
|---|---|---|
| R-7 | High — moisture-tolerant, can double as a vapor barrier at 1.5 inches | Sealed/encapsulated crawl spaces |
Source: Johns Manville, Spray Polyurethane Foam Alliance
Rigid Foam Board (XPS/EPS/Polyiso)
Rigid foam sheets attach directly to foundation walls. They're a popular middle-ground choice for homeowners who want strong performance without spray foam pricing.
- XPS: R-5 per inch, strong resistance to water absorption and vapor transmission
- EPS: R-3.85 to R-4.60 per inch, low water absorption (2-4% by volume depending on type)
- Polyiso: R-6.0 per inch, foil-faced versions act as an effective vapor barrier
| R-Value per Inch | Moisture Resistance | Best Use Case |
|---|---|---|
| R-3.85 to R-6 (varies by type) | Good, especially with sealed seams | Budget-conscious sealed crawl spaces, DIY projects |
Source: DuPont Styrofoam Scoreboard, Carlisle InsulFoam
Mineral Wool (Rockwool)
Made from spun stone fibers, mineral wool holds up better in damp environments than fiberglass. It's naturally fire-resistant, which some homeowners consider a bonus for the space directly beneath their living area. It also resists pests better than fiberglass and usually costs more than basic batts, though less than spray foam.
| R-Value per Inch | Moisture Resistance | Best Use Case |
|---|---|---|
| R-4 to R-4.3 | Moisture resistant and vapor permeable | Wall or joist cavities in moderate-moisture climates |
Source: ROCKWOOL
Fiberglass Batts
Fiberglass has been the default crawl space insulation for decades. It's cheap and widely available.
But here's the problem: fiberglass absorbs and holds moisture, and damp fiberglass sags, loses R-value, and creates an inviting environment for rodents. Most contractors now steer homeowners away from it in unsealed or humid crawl spaces.
| R-Value per Inch | Moisture Resistance | Best Use Case |
|---|---|---|
| R-3 to R-4 | Poor when exposed to moisture | Dry, vented crawl spaces only |
Source: Johns Manville
Reflective/Radiant Barrier Insulation
Foil-faced radiant barriers work differently than the materials above. Rather than slowing heat conduction, they reflect radiant heat. According to the Reflective Insulation Manufacturers Association, radiant barriers can't even be measured with a standard R-value because they function on a different principle entirely.
They're lightweight and useful as a supplemental layer, but they require an air gap to work and shouldn't be your only insulation strategy.
| R-Value per Inch | Moisture Resistance | Best Use Case |
|---|---|---|
| Not applicable (radiant, not conductive) | Not established for crawl-space use | Supplemental layer only, requires air gap |

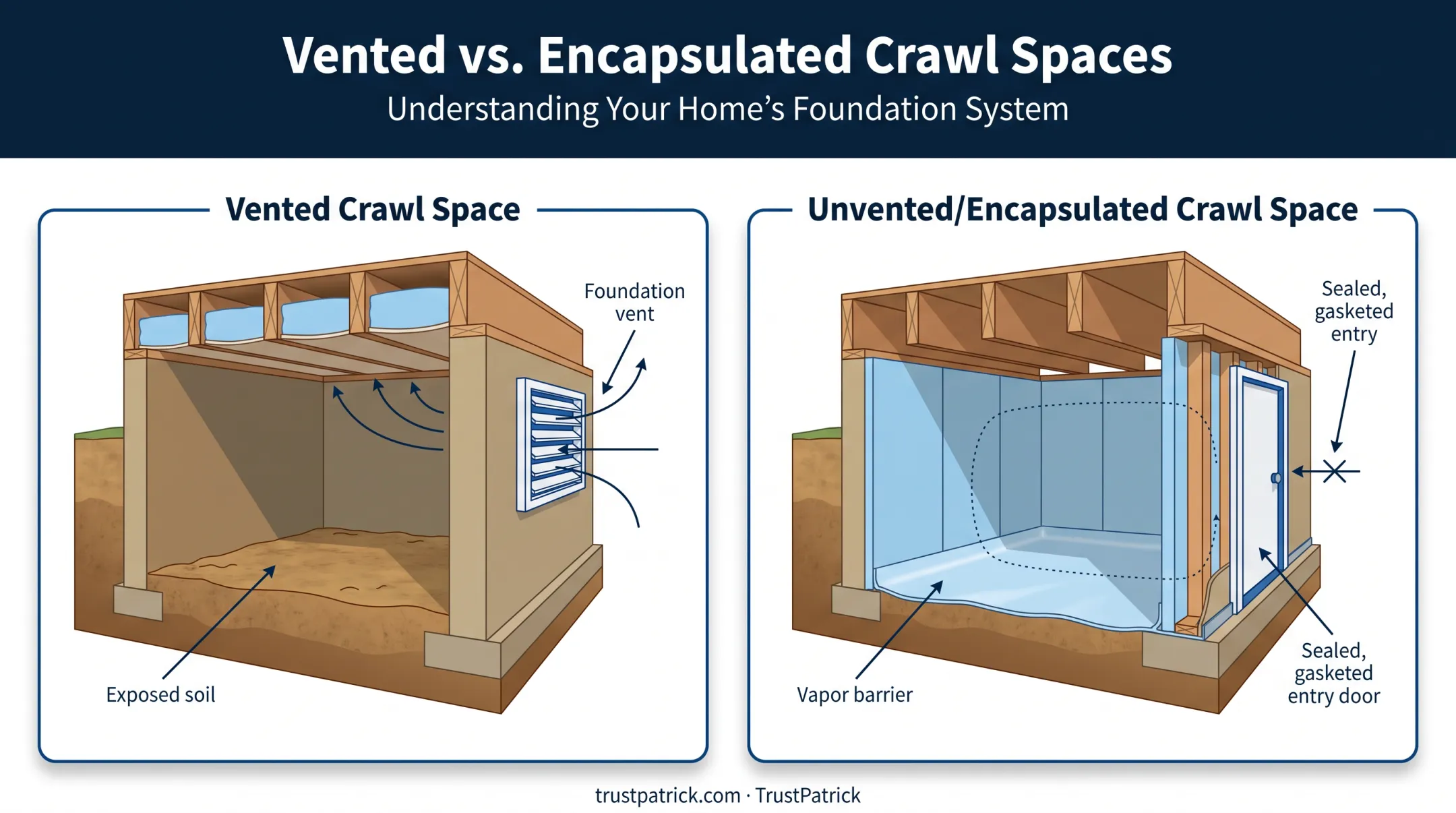

Vented vs. Unvented Crawl Spaces: Choosing the Right Approach
Here's where a lot of homeowners get tripped up. The material you choose depends entirely on whether your crawl space is vented or unvented (encapsulated).
- Vented crawl spaces treat the space as exterior. Insulation goes between the floor joists.
- Unvented (encapsulated) crawl spaces condition the space as part of the home's interior. Insulation goes on the foundation walls instead.
Building science research has shifted firmly toward sealing rather than venting. The Building Science Corporation recommends against venting crawl spaces to the exterior at all, describing traditional vented crawl spaces as prone to dampness, mold, and pest problems.
Their prescribed approach includes:
- An uninsulated floor
- A ground vapor seal
- Insulated and air-sealed walls
- Conditioning with indoor air
Before deciding, assess:
- Your local climate (humid Southeast vs. dry Southwest affects the right choice)
- Existing moisture levels in the crawl space
- Your home's age and current ventilation setup
- Your budget for a full encapsulation versus a partial upgrade

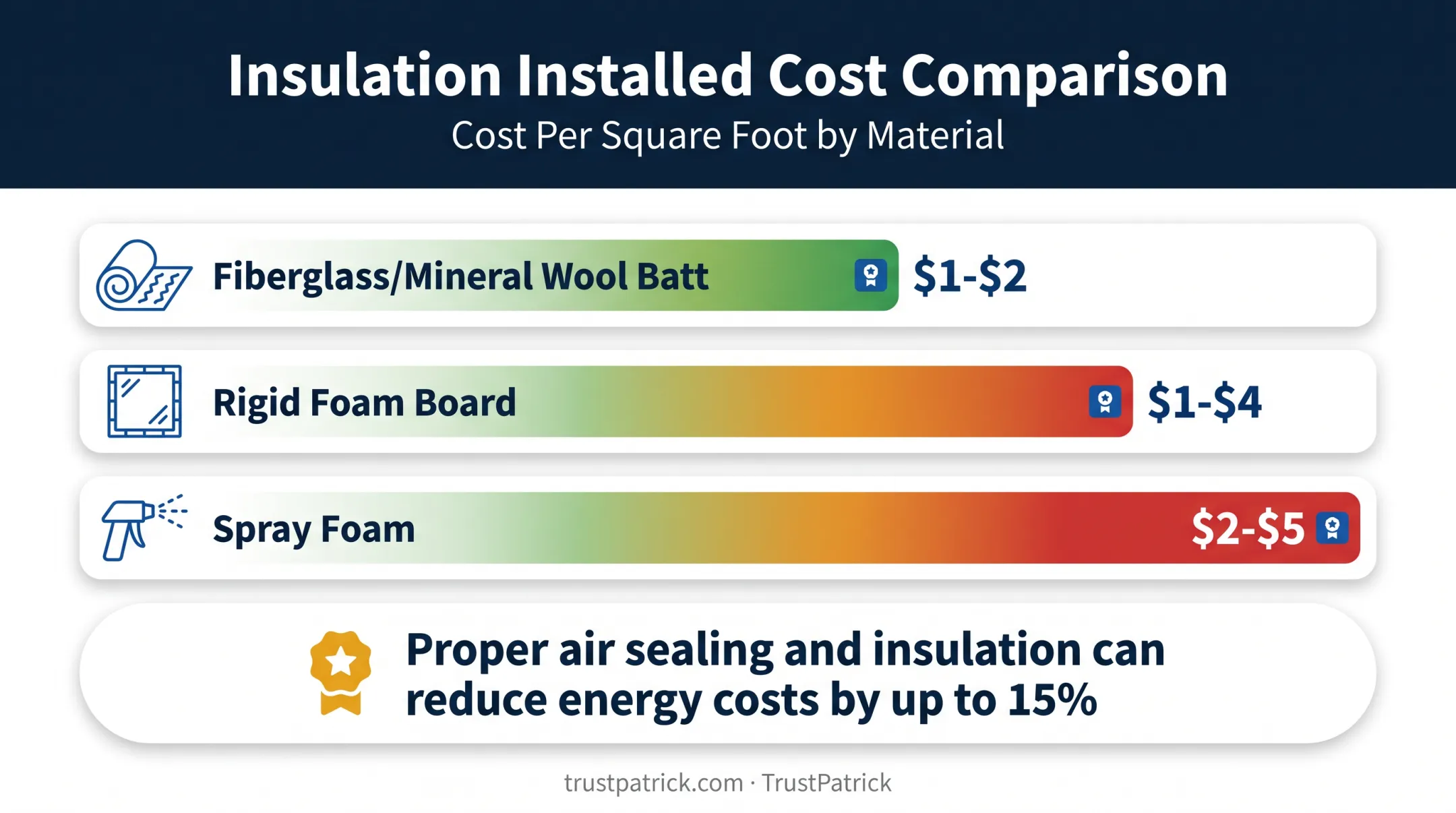

Cost Breakdown for Crawl Space Insulation
Costs vary by material and scope. Here's what homeowners typically pay per square foot, installed:
| Material | Cost per Sq Ft (Installed) |
|---|---|
| Fiberglass or mineral wool batt | $1 - $2 |
| Rigid foam board | $1 - $4 |
| Spray foam | $2 - $5 |
Source: Fixr.com Crawl Space Insulation Cost Guide
A basic vented crawl space project with fiberglass batts sits at the lower end of that range. A full sealed encapsulation with spray foam, vapor barriers, and moisture control pushes toward the higher end — and often adds costs beyond insulation alone, such as dehumidification.
The payoff comes over time. Air sealing combined with insulation can cut heating and cooling costs by roughly 15%, according to ENERGY STAR. Over years of ownership, those savings can offset a meaningful share of the upfront cost.
How to Choose the Right Crawl Space Insulation Contractor
Homeowners make a few predictable mistakes here. The biggest one: choosing a contractor based on price alone, without a moisture assessment first. Insulation installed over an existing moisture problem will fail, regardless of material quality.
What to evaluate before hiring:
- Licensing and insurance: Confirm coverage before any work begins
- Encapsulation experience: Choose contractors who handle sealed crawl space systems
- Warranty terms: Ask what's covered and for how long
- Materials used: Expect moisture-resistant options as standard, not an upsell
Finding a contractor who clears that bar is harder than it should be. High-pressure sales tactics and spam calls after a single quote request are common in this industry.

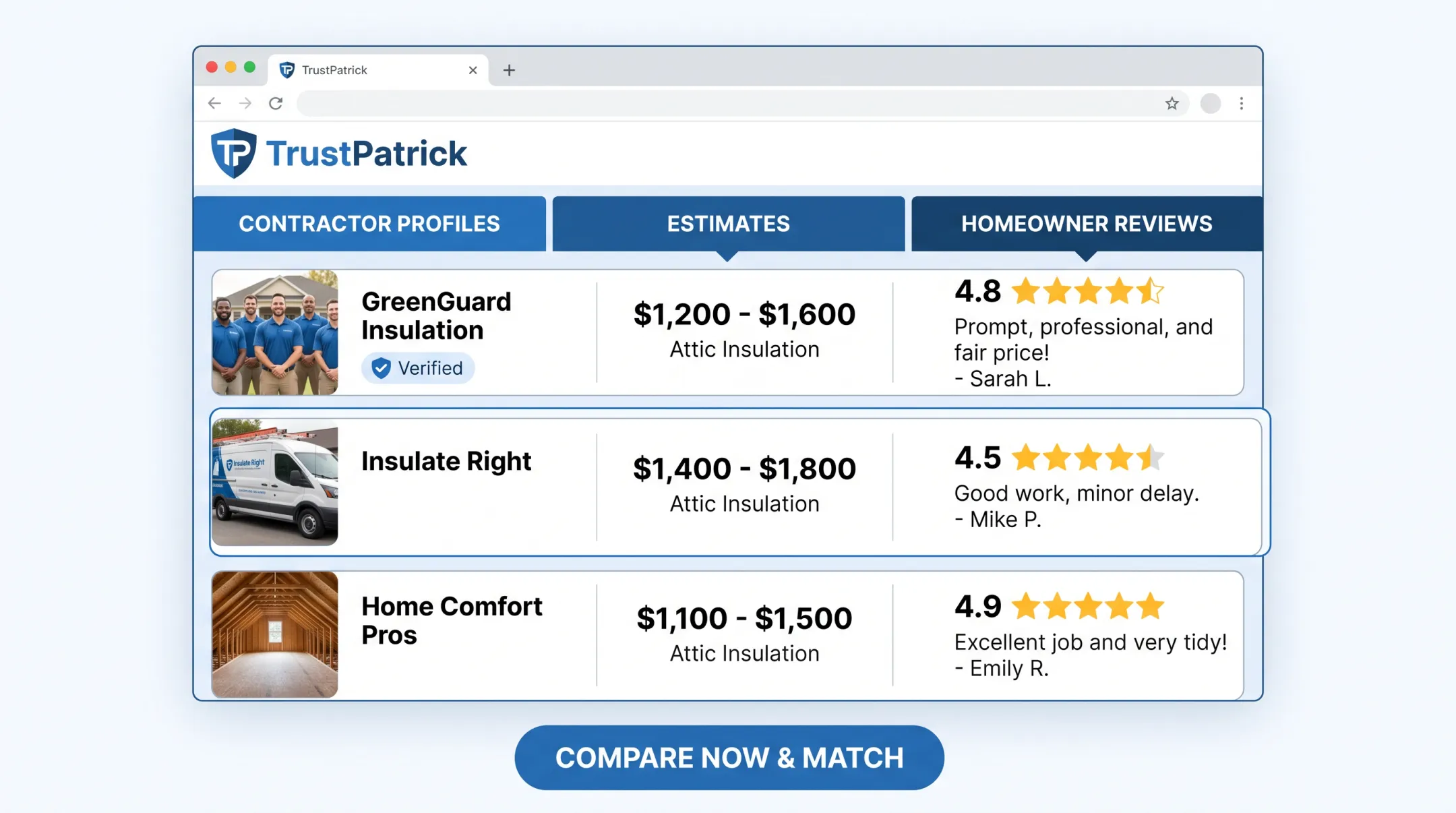

TrustPatrick matches you with up to three pre-screened, background-checked local insulation contractors. Enter your ZIP code and matches usually arrive in under two minutes.
You compare profiles, estimates, and real homeowner reviews side by side, with no obligation to hire anyone. There are no paid rankings and no pay-to-play listings, so the contractors you see aren't there because they paid for placement.
Conclusion
The best crawl space insulation material isn't a single universal answer. It depends on whether your space is vented or sealed, your local climate, and existing moisture conditions, not just the lowest price tag or the highest R-value on paper.
Cutting corners with cheap fiberglass in a damp, unsealed crawl space almost always costs more down the line in mold remediation, pest control, or redone work. Prioritize proper moisture control and professional installation from the start.
Ready to get quotes? Compare up to three estimates from vetted, background-checked local insulation contractors through TrustPatrick before you commit.
Frequently Asked Questions
What's the best insulation to use in a crawl space?
Closed-cell spray foam is typically the best choice for sealed crawl spaces because of its moisture resistance and air-sealing properties. Rigid foam board is a solid budget-friendly alternative for similar applications.
How much does it cost to insulate a 1,000 square foot crawl space?
Costs range from roughly $1,000 to $5,000 depending on material. Basic fiberglass projects sit at the lower end, while full spray foam encapsulation runs significantly higher.
Is it a good idea to insulate a crawl space?
Yes. Proper insulation improves energy savings, moisture control, and comfort. Pair it with vapor barriers and air sealing for best results.
Should I insulate the crawl space floor or the walls?
For unvented, encapsulated crawl spaces, wall insulation is preferred. Vented crawl spaces typically require floor joist insulation instead.
How long does crawl space insulation last?
Fiberglass and mineral wool can last a lifetime under normal conditions, per the Insulation Institute. Moisture exposure, however, can shorten that lifespan considerably regardless of material.
Can I install crawl space insulation myself?
Rigid foam board is DIY-friendly if you seal seams carefully. Spray foam needs professional equipment and training, so it's best left to a licensed contractor. Comparing a few vetted local pros helps you get the right material and a clean install.
