Handy homeowners can often manage gutter and downspout work. Internal drains, scuppers, and siphonic systems are a different story. These typically require licensed roofing or plumbing professionals who understand code requirements and structural loads.
Get it wrong, and the consequences pile up fast: ponding water, structural overload, leaks, mold growth, and voided roofing warranties. This guide walks through drainage system types, installation steps, validation checks, and when it's time to bring in a vetted contractor.
TL;DR
- Flat roofs need at least 1/4 inch per foot slope and reliable drainage to prevent ponding
- Installation requires site assessment, correct drain sizing/placement, membrane waterproofing, and leak testing
- Skipping post-installation validation is a leading cause of delayed leaks and hidden roof damage
- Complex installs (multiple drains, structural work, large roofs) call for a licensed, background-checked professional

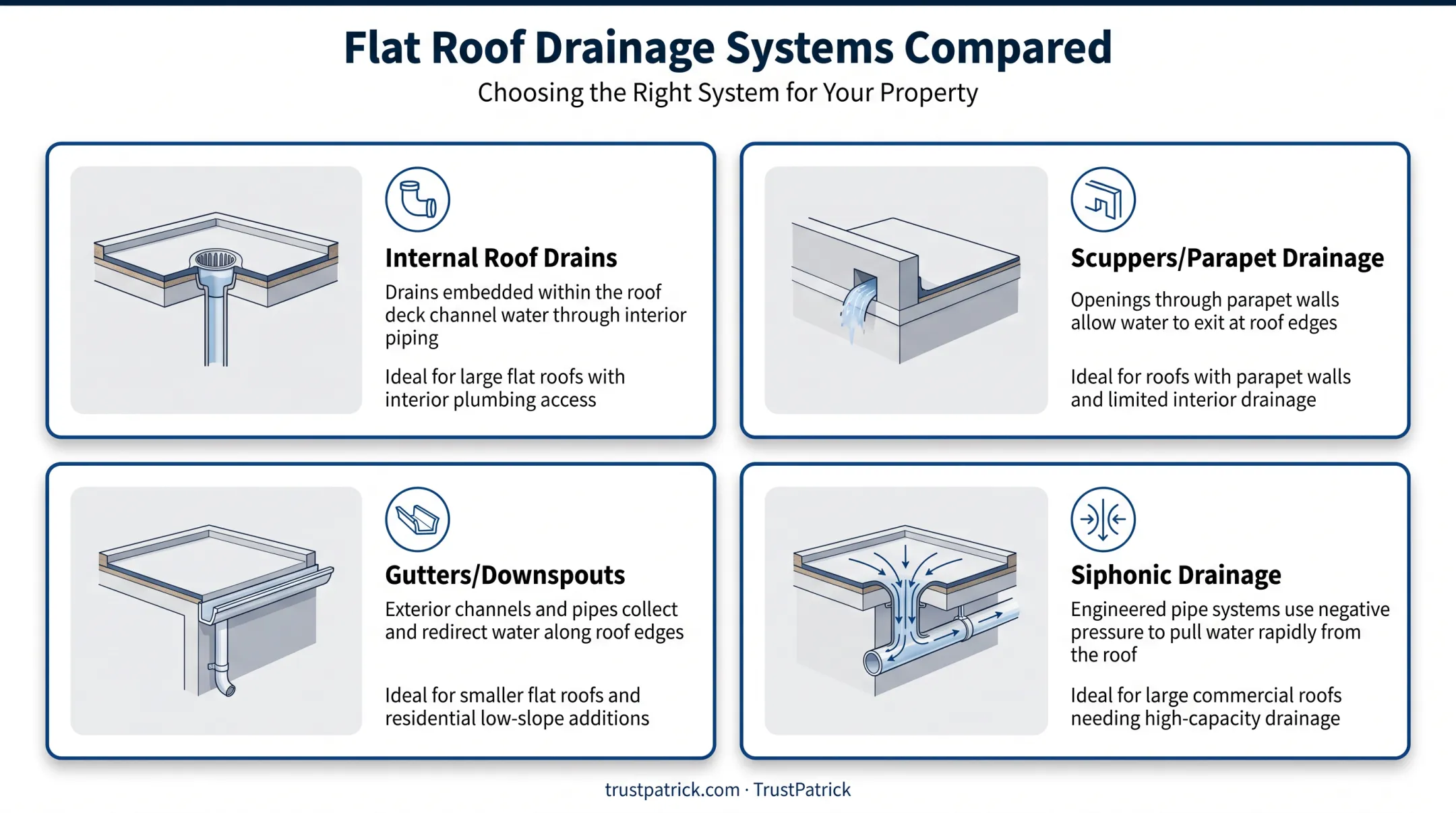

Types of Flat Roof Drainage Systems
Choosing the right system depends on roof size, structural layout, and local rainfall patterns.
Internal (interior) roof drains work well for large residential and commercial flat roofs. Water flows through drains embedded in the roof surface, down through interior piping, and into the building's storm drainage system. Sizing follows the manufacturer's published flow rate for water head above the drain and the roof's maximum anticipated ponding depth.
Scuppers and parapet wall drainage serve as primary or overflow options on roofs with parapet walls. Under the International Plumbing Code, a scupper opening must be at least 4 inches high, with width sized to match a roof drain serving an equivalent roof area.
Gutter and downspout systems suit smaller roofs or those with minimal slope. Hung and recessed gutters can serve as primary or secondary drainage, with sizing based on roof-surface flow calculations.
Siphonic drainage systems are engineered solutions, often used in retrofits where slope is limited. They create negative pressure that pulls water through smaller, non-sloping pipes at higher velocity. That design reduces the number of drains and downspouts needed compared with gravity systems. These require design certification under ASME A112.6.9 and ASPE 45.
Drain count matters too. The 2024 International Plumbing Code requires a minimum of 2 roof drains for roofs up to 10,000 square feet, and at least 4 drains for anything larger. That figure is a floor, not a full hydraulic calculation. Actual sizing depends on your local 100-year hourly rainfall rate.
Prerequisites and Safety Considerations
Site and System Readiness
Before installation begins, assess the roof itself:
- Identify low spots and existing ponding areas
- Confirm the roof slope meets the 1/4:12 (2%) minimum required under the 2024 IBC
- Check joist spacing against manufacturer specifications for the drain assembly
- Verify drain size, sump pan type, and pipe sizing all match existing plumbing and deck thickness
Skipping compatibility checks is how mismatched parts end up leaking within a year.
Safety and Code Compliance

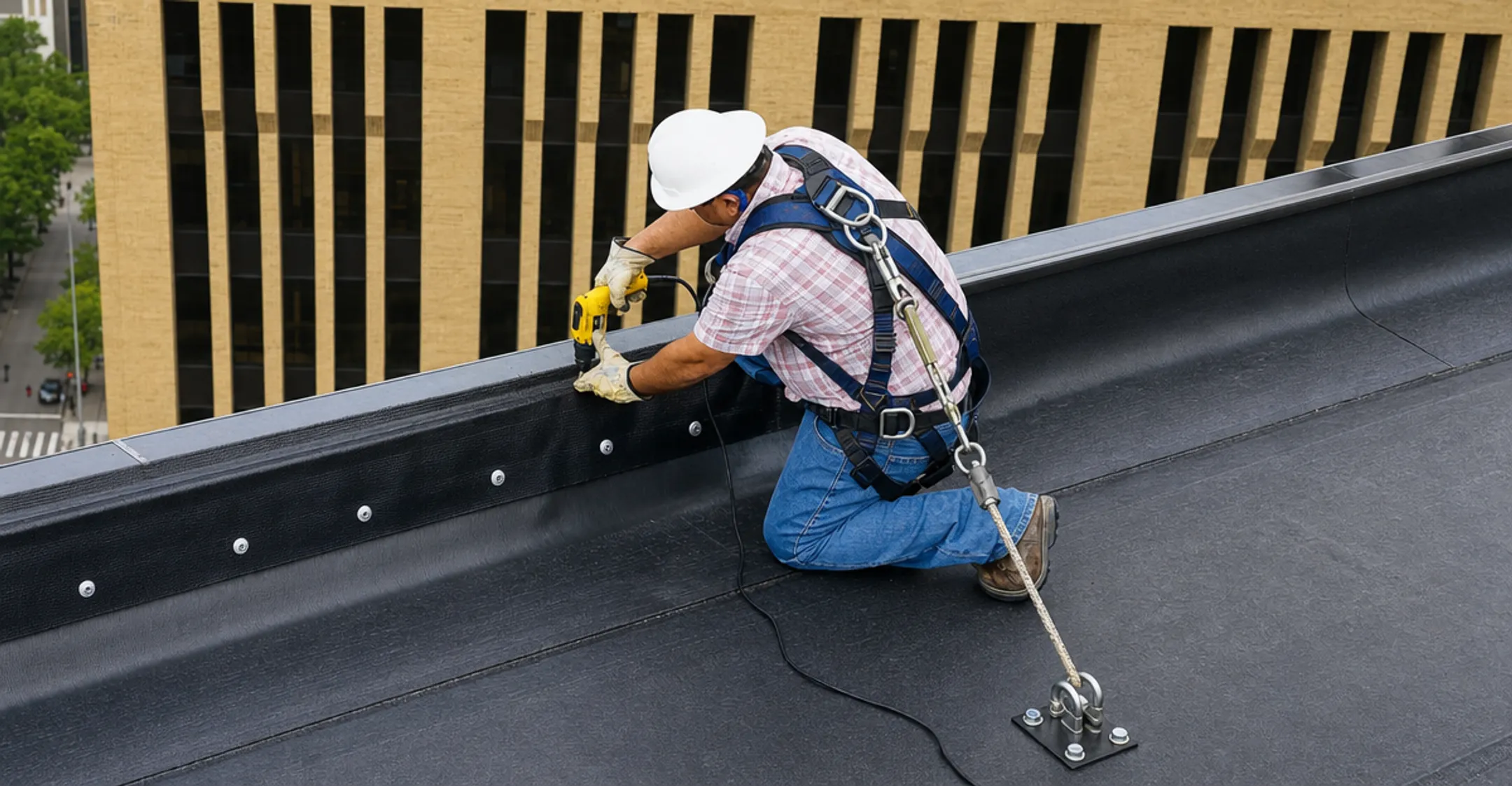

Low-slope roof work carries real fall risk. Under OSHA 29 CFR 1926.501, workers on unprotected edges 6 feet or more above lower levels need fall protection. Options include guardrails, safety nets, personal fall arrest systems, or a warning line combined with safety monitoring.
Non-negotiables before starting:
- Never proceed without checking local plumbing and building codes
- Don't skip a structural assessment if roof deflection seems severe
- Avoid wet or windy conditions—both compromise footing and membrane adhesion
- Warning lines (if used) must sit 34–39 inches high and be flagged every 6 feet
A licensed roofing contractor should set fall protection and confirm code compliance before any drain work starts.
Tools and Materials Required
Knowing what a flat roof drain job requires helps you read contractor bids and catch incomplete scopes.
Essential tools:
- Hole saw and utility knife
- Pipe cutter and soldering kit or couplings
- Extension ladder rated for the roof height
- Fall protection gear and non-slip footwear
Core materials:
- Roof drain assembly (body, dome, clamp ring)
- Sump pan matched to deck thickness
- Waterproofing membrane and roofing cement
- Strainer or debris guard
Professional-grade drains with integrated gravel guards cost more upfront but mean fewer clogs and return trips. Manufacturer assemblies (like Josam or Zurn) ship as matched sets. Mixing brands often voids warranty coverage and weakens the seal, so confirm which system your contractor specifies.
How to Install a Flat Roof Drain (Step-by-Step)
Skipping waterproofing integration or misjudging drain sizing are the two most common causes of recurring leaks. Use these steps to follow the work—or to brief a pro when cutting the deck and tying into plumbing is beyond a safe DIY scope.
Locate low spots and mark drain placement. Base positioning on slope direction and joist spacing, not just visual guesswork.
Cut the roofing membrane, insulation, and decking to the exact dimensions needed for the sump pan and drain body.
Secure the sump pan or deck plate to the roof joists, then attach the drain assembly according to manufacturer instructions.
Connect the drain to plumbing pipes using couplings or soldered joints. Maintain correct slope in the horizontal run so water flows freely to the stack. In many U.S. jurisdictions, this tie-in requires a licensed plumber.
Apply waterproofing membrane and roofing cement around the drain base. Install the clamping ring, then the strainer or dome on top.
Restore the roofing material around the drain and apply a final sealant layer for a fully watertight finish.
Each step depends on the one before it. Rushing the membrane seal in step 5 is where most DIY installs go wrong. If you want the flashing and plumbing done once, compare pre-screened local roofing contractors through TrustPatrick before the next storm tests a weak seal.
Post-Installation Checks and Common Problems
Validating the Installation
Don't call the job finished until you've tested it. Run through both checks:
- Visual check: Confirm fasteners are secure and the membrane seal is even all around the drain base

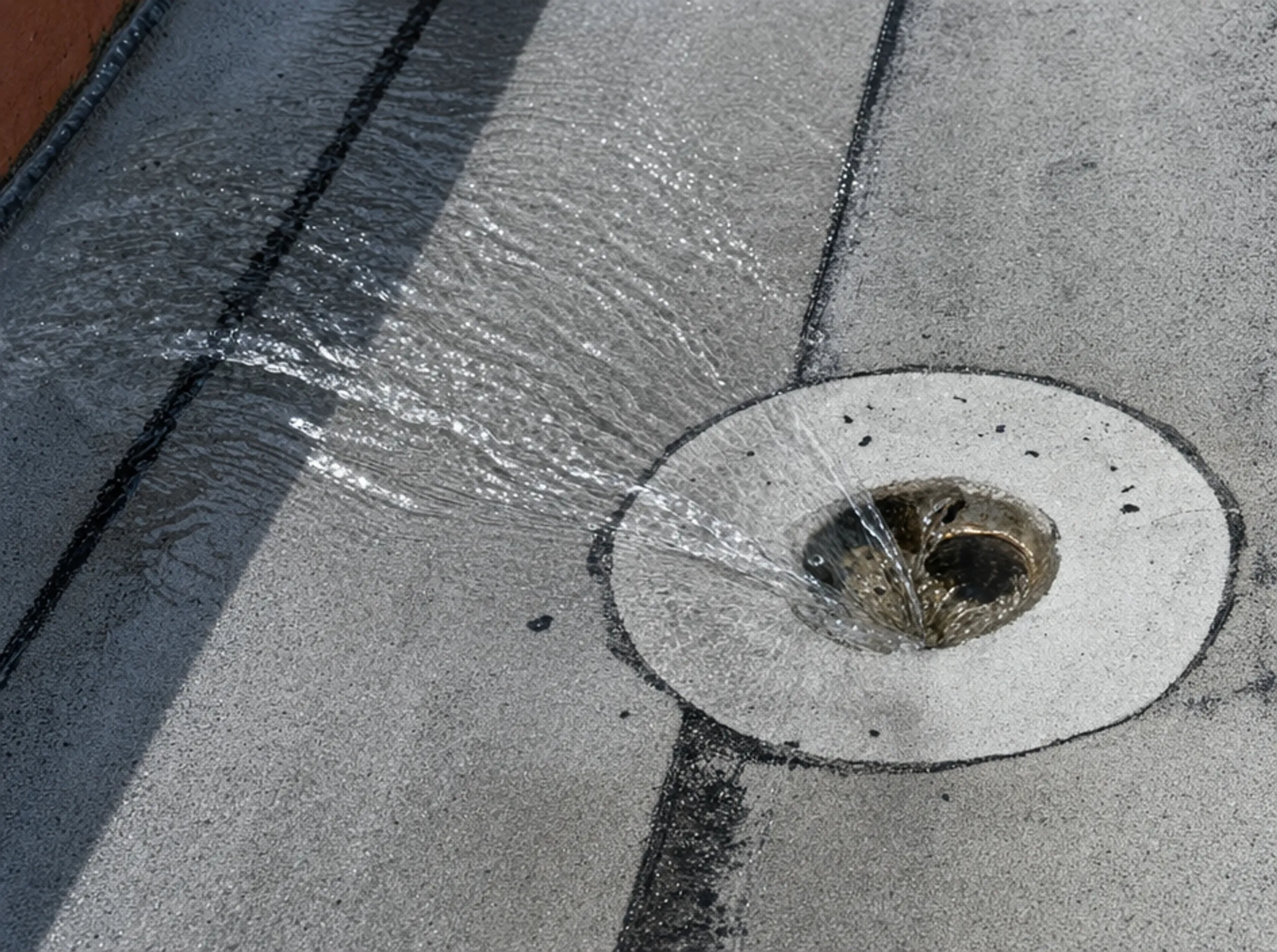

- Functional test: Pour water directly onto the roof surface near the drain and confirm it flows without pooling or leaking below
NRCA's benchmark is clear: water should drain or evaporate within 48 hours after rainfall under normal drying conditions. Skipping this validation step is exactly why hidden leaks tend to surface only after the first real storm.
Common Issues and Fixes
| Issue | Likely Cause | Fix |
|---|---|---|
| Continued ponding | Incorrect drain placement or inadequate slope | Add tapered insulation or an additional drain |
| Leaks around drain | Poor membrane-to-flashing seal | Reapply sealant, check clamping ring tightness |
| Clogged drains | Debris/leaves without strainer protection | Install debris guards, schedule regular maintenance |
Pro Tips and When to Call a Professional
A few practical habits protect the quality of your install:
- Install during dry weather. Membrane adhesion and sealant curing both suffer in rain or high humidity.
- Coordinate with roof replacement projects. If tapered insulation is going in anyway, add or reposition drains at the same time.
- Document everything with photos. Before-and-after shots protect your warranty claim and help future contractors understand what's underneath.
Call a licensed contractor when the job exceeds DIY scope:
- Multiple drain installations on one roof
- Any structural modification to the deck or framing
- Complex residential layouts with long drain runs
- Work that must satisfy code inspections or insurance requirements
Drainage projects often span two trades. Roof membrane integration typically falls to roofing contractors, while pipe connections and plumbing code compliance usually fall to a plumber. A combined project may need both.
If you're not sure which trade to call, TrustPatrick lets you compare up to three vetted, background-checked local contractors—whether your project fits under roofing or drainage—with no spam or pressure before you commit.
Conclusion
Correct drainage installation isn't a cosmetic detail. It directly protects your roof's lifespan, your building's structural integrity, and the safety of anyone working above or below it. Plan carefully, confirm code compliance at every step, and test thoroughly before calling the job done.
When the project moves beyond gutter cleaning into drain placement, structural checks, or plumbing connections, bring in a qualified professional. That step often separates a roof that lasts from one that leaks within the year. TrustPatrick connects homeowners with pre-screened, background-checked local contractors so you can compare up to three options without spam or pressure.
Frequently Asked Questions
How much does it cost to install a roof drainage system?
Costs vary widely based on drain type, roof size, and whether you DIY or hire a professional. Get multiple quotes before committing so you can compare labor and material pricing for your roof.
How are roof drains installed?
Installation starts by locating low spots and cutting an opening for the sump pan. The drain assembly is then secured, tied into the plumbing, and sealed with waterproofing membrane and sealant.
What is the minimum slope required for a flat roof to drain properly?
Building code requires a minimum slope of 1/4 inch per foot (1/4:12) for most membrane roofing types. This slope prevents water from pooling and causing structural or membrane damage over time.
How many roof drains does a flat roof need?
Plumbing code requires at least 2 drains for roofs up to 10,000 square feet, and at least 4 drains for larger roofs. Actual spacing also depends on rainfall rate and roof geometry.
Can I install a roof drain myself, or do I need a professional?
Simple gutter and downspout fixes are often DIY-friendly. Internal drains, scuppers, and anything touching plumbing code typically require a licensed professional.
How do I know if my roof drainage system is failing?
Watch for ponding water that lasts more than 48 hours, interior ceiling leaks, or visible sagging in ceiling tiles. Any of these means it's time for an inspection.
