Here's the catch: insulating basement walls looks simple, but the results depend entirely on moisture conditions, material choice, and installation order. Get it wrong, and you don't get a warmer basement — you get hidden mold behind your new drywall within a year or two.
This guide walks through whether and when to insulate, what materials you actually need, the step-by-step process, and the mistakes that turn a good project into a moisture problem.
Key Takeaways
- Verify the wall is fully dry before insulating; moisture trapped behind insulation guarantees mold
- Never let fiberglass batts touch bare concrete; rigid foam or spray foam goes against the wall first
- Skip the interior poly vapor barrier — it traps moisture instead of releasing it
- Target R-5 to R-15 continuous insulation based on your climate zone
- Insulate rim joists; they deliver the best return of any single step

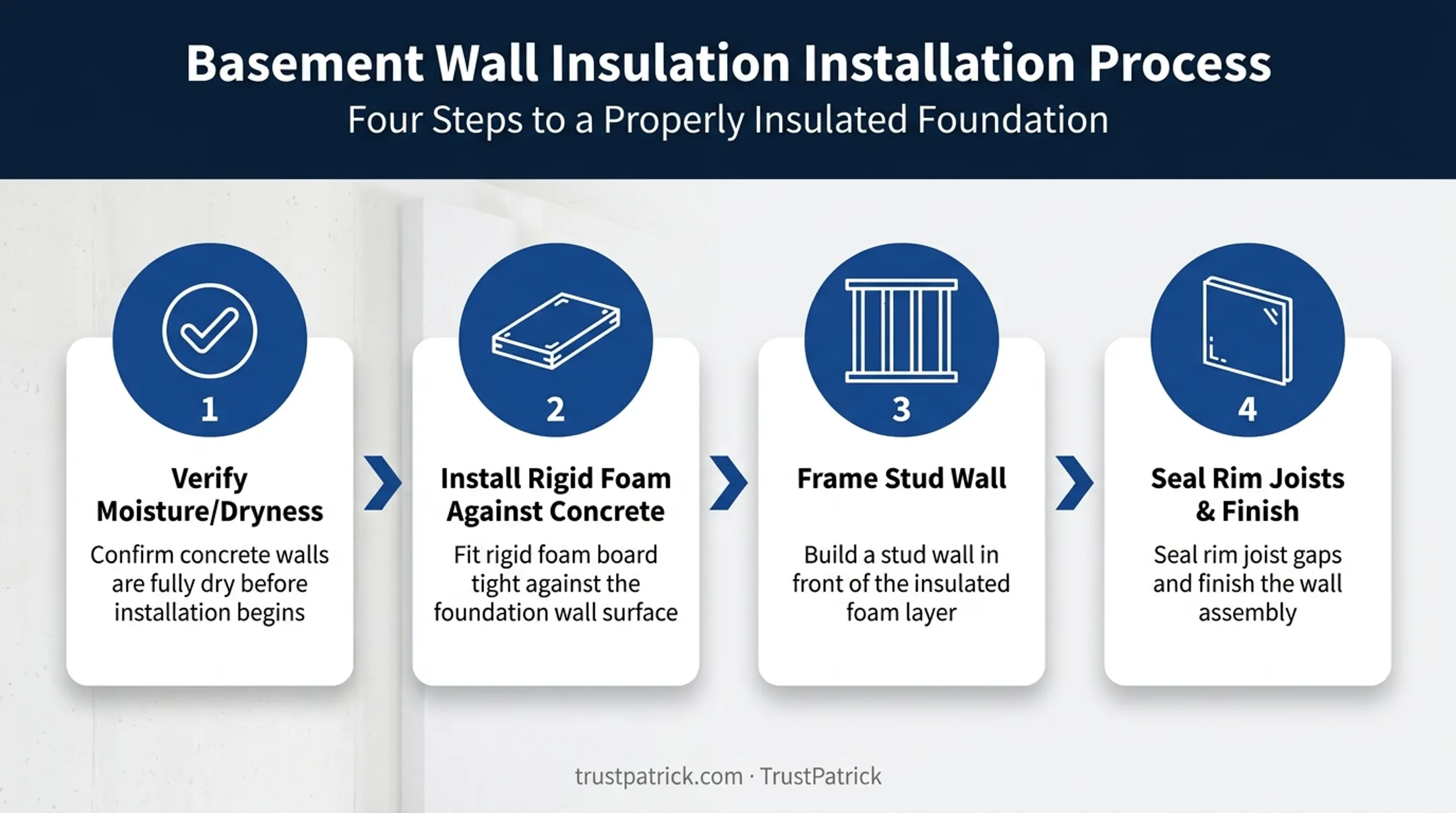

How to Insulate Basement Walls (Step-by-Step)
Step 1: Resolve Moisture Issues and Verify Dryness
Before you touch a single foam board, confirm the wall is actually dry.
- Check that grading slopes away from the foundation
- Confirm gutters and downspouts direct water away from the house
- Test any sump pump to make sure it's operational
- Watch the wall for 30 days, checking for dampness, efflorescence, or active leaks
Building Science Corporation identifies five ways moisture reaches basement walls: construction moisture, air leakage, capillary rise, diffusion, and groundwater leakage. Cover any of these up with insulation before fixing them, and you're building a mold incubator behind your drywall.
If you find active leaks or persistent dampness, hire a waterproofing or foundation contractor before you insulate.

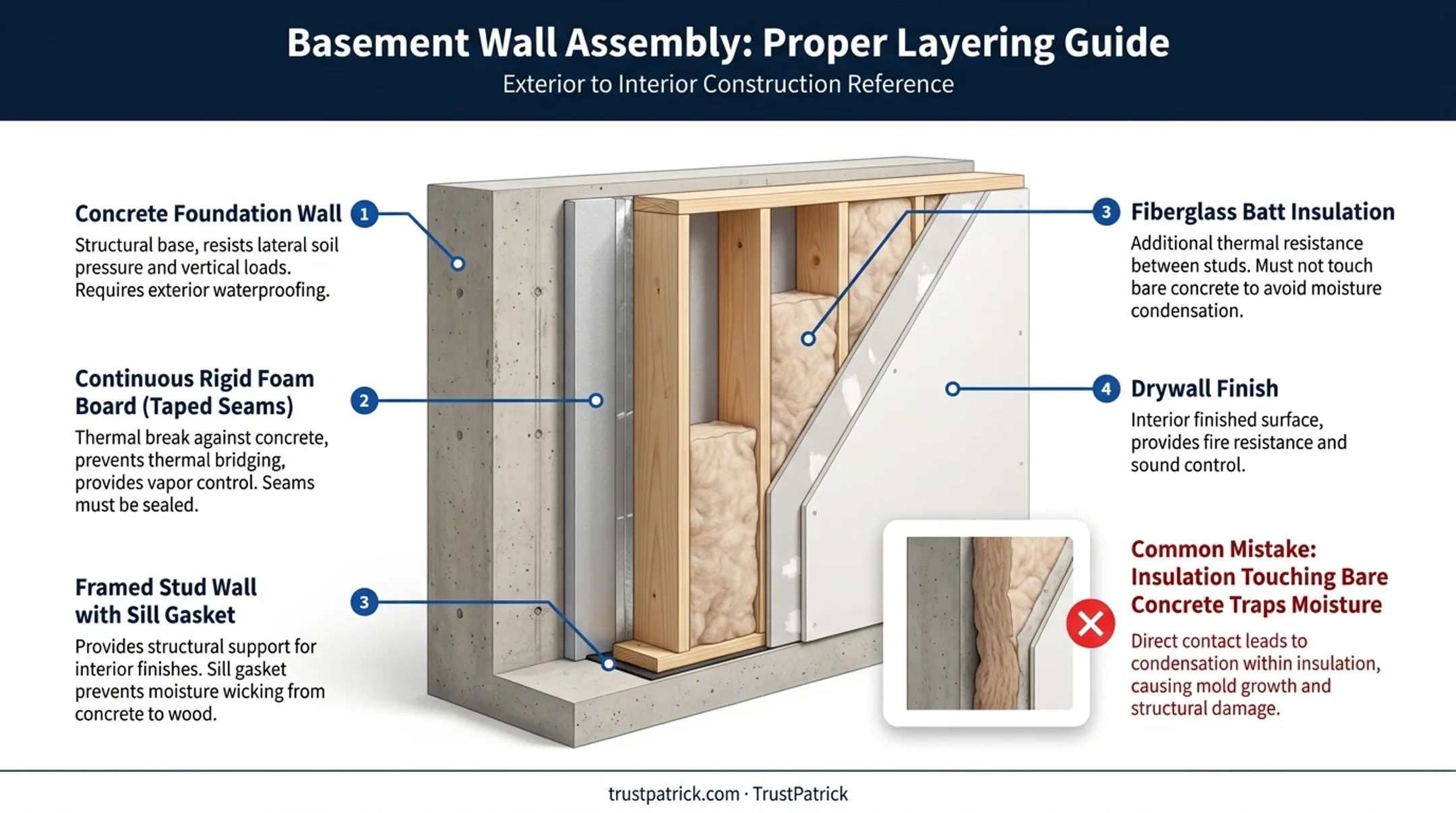

Step 2: Install Rigid Foam Against the Concrete
Once the wall is confirmed dry, install continuous rigid foam directly against the concrete.
- Cut XPS or EPS foam boards to run from the floor to the rim joist, sized to your climate zone's thickness recommendation
- Attach with construction adhesive, and skip mechanical fasteners that could puncture any exterior waterproofing membrane
- Tape every seam with foil or housewrap tape to create a continuous air barrier
This foam layer does double duty. It insulates, and it keeps humid interior air from condensing against cold concrete. That condensation is exactly how mold problems start in summer.
Step 3: Frame the Stud Wall
With the foam air barrier in place, frame a standard 2x4 stud wall slightly offset from the foam surface.
- Use a sill gasket or treated lumber at the bottom plate to prevent rot where wood meets concrete
- Never let the bottom plate sit directly on bare concrete
- Add unfaced fiberglass or mineral wool batts in the stud cavities if you need extra R-value
This is the one place fiberglass is safe: behind the continuous foam layer, never against bare concrete.
Step 4: Seal Rim Joists and Finish the Wall
The rim joist area is the leakiest part of most basements, and it deserves individual attention.
- Cut and fit rigid foam or spray foam into each rim joist bay separately, since bay sizes vary
- Install drywall over the stud wall as the code-required thermal and ignition barrier
- Do not add a poly vapor barrier under the drywall
- Walk the entire wall one final time, checking that every seam is taped and no gaps remain top or bottom
When Should You Insulate Basement Walls?
This project makes sense once you've confirmed the basement is dry and before you finish it into living space, storage, or a workshop. Insulating first and troubleshooting moisture later is backwards.
Skip insulation, for now, if:
- The wall is actively leaking
- There are unresolved structural cracks in the foundation
- You're not sure whether past dampness has fully resolved
Wall surface matters too. Stone or rubble foundations, and walls with highly irregular surfaces, rarely seat tightly against rigid foam. Spray foam applied by a professional can conform to those uneven surfaces in a way rigid board simply can't.
If you're unsure whether your wall is dry enough or suited to a DIY approach, get it checked before you start. TrustPatrick lets you compare up to three vetted, background-checked local contractors for a no-obligation evaluation. That second opinion is worth getting before you commit to work that's hard to undo once it's behind drywall.
What You Need Before Insulating Basement Walls
Prep work and material selection determine whether the finished wall stays dry for the long haul.
Core materials:
- Rigid XPS or EPS foam boards
- Construction adhesive
- Foil or housewrap seam tape
- Canned spray foam for gaps and rim joist bays
- Framing lumber and sill gasket
- Unfaced fiberglass or mineral wool batts
- Drywall
Before you start:
- Basic carpentry tools (level, saw, caulk gun)
- Ventilation and gloves for spray foam work
- Local permit check — many areas require one for basement finishing, even insulation-only jobs
If moisture control, framing, or permits feel like more than you want to manage, a vetted local insulation contractor can handle materials and install together.
Key Parameters That Affect Results
Results hinge on four choices: R-value for your climate zone, foam type, vapor permeance, and thickness matched to wall condition.
R-Value by Climate Zone
The 2021 IRC sets these prescriptive minimums for basement walls:
| Climate Zone | Continuous Insulation (ci) |
|---|---|
| 1-2 | Not required |
| 3 | R-5ci (or R-13 cavity) |
| 4 (except Marine) | R-10ci (or R-13 cavity) |
| 5-8 | R-15ci (or R-19 cavity, or R-13 cavity + R-5ci) |
Check with your local building department, since jurisdictions sometimes adopt amended versions of the IRC. Going one level above the minimum is often worth the modest added material cost.

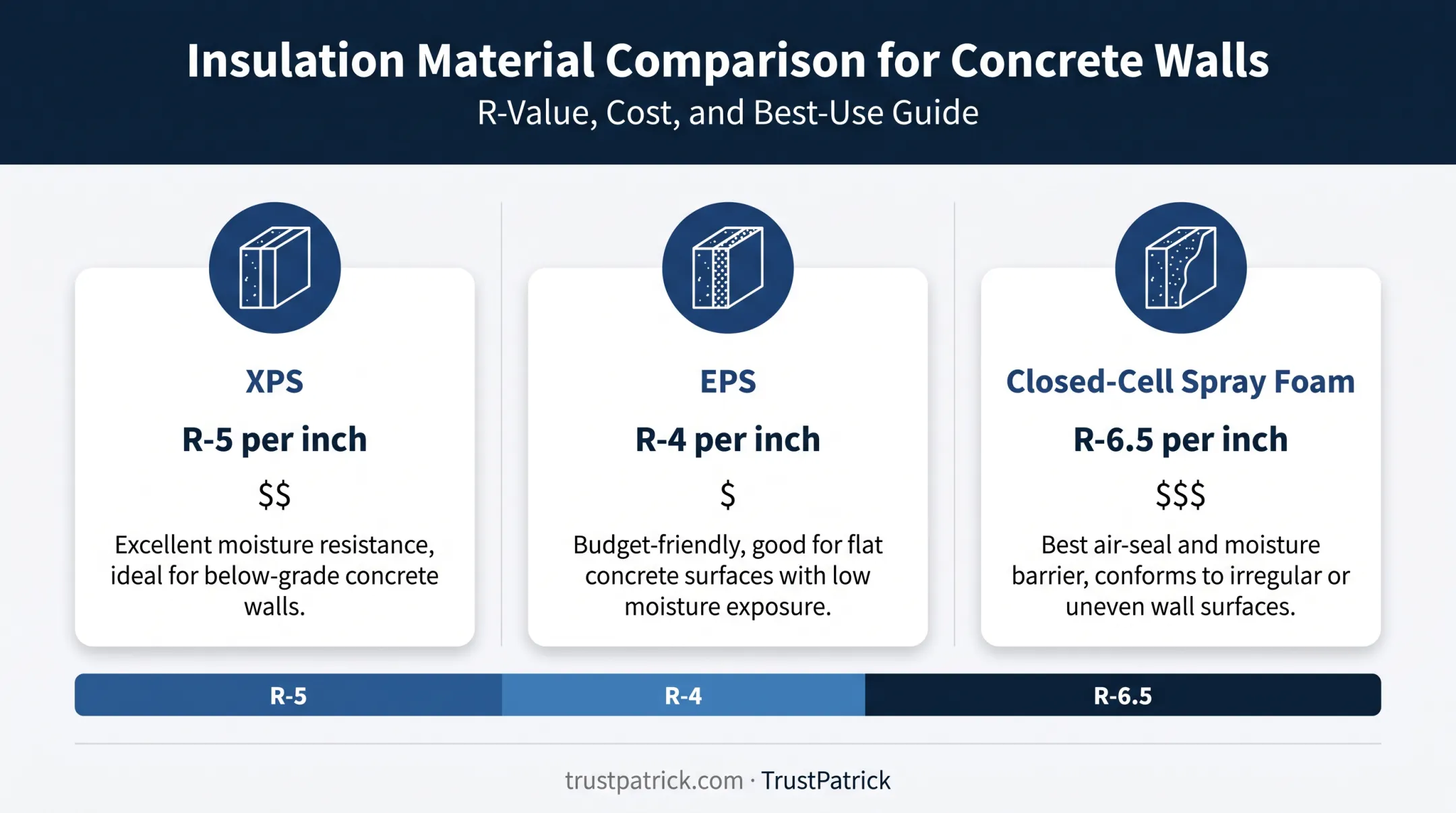

Material Selection: XPS vs. EPS vs. Closed-Cell Spray Foam
| Material | R-value per inch | Notes |
|---|---|---|
| XPS | Around R-5.0 | Rigid, moisture-resistant, easy to cut |
| EPS | Roughly R-3.85-3.92 | Lower cost, slightly lower R-value per inch |
| Closed-cell spray foam | Around R-7 | Highest R-value per inch, conforms to irregular walls |
Fiberglass and mineral wool are not safe directly against concrete. They belong only in stud cavities behind a continuous foam layer.
Vapor Permeance
Building Science Corporation points toward foam in roughly the 0.5–2.0 perm range for basement assemblies. That range lets the wall dry slowly inward instead of trapping moisture against the concrete.
Always check your product's tested permeance. Never add a Class I vapor retarder (such as polyethylene sheeting) over air-permeable insulation.
Insulation Thickness and Wall Condition
Colder zones need thicker foam to hit code minimums. Irregular or stone walls that won't accept rigid board flush are better candidates for spray foam, which seals to uneven concrete or stone.
Common Mistakes and Troubleshooting
A few installation mistakes can undo otherwise solid basement insulation. Watch for these:

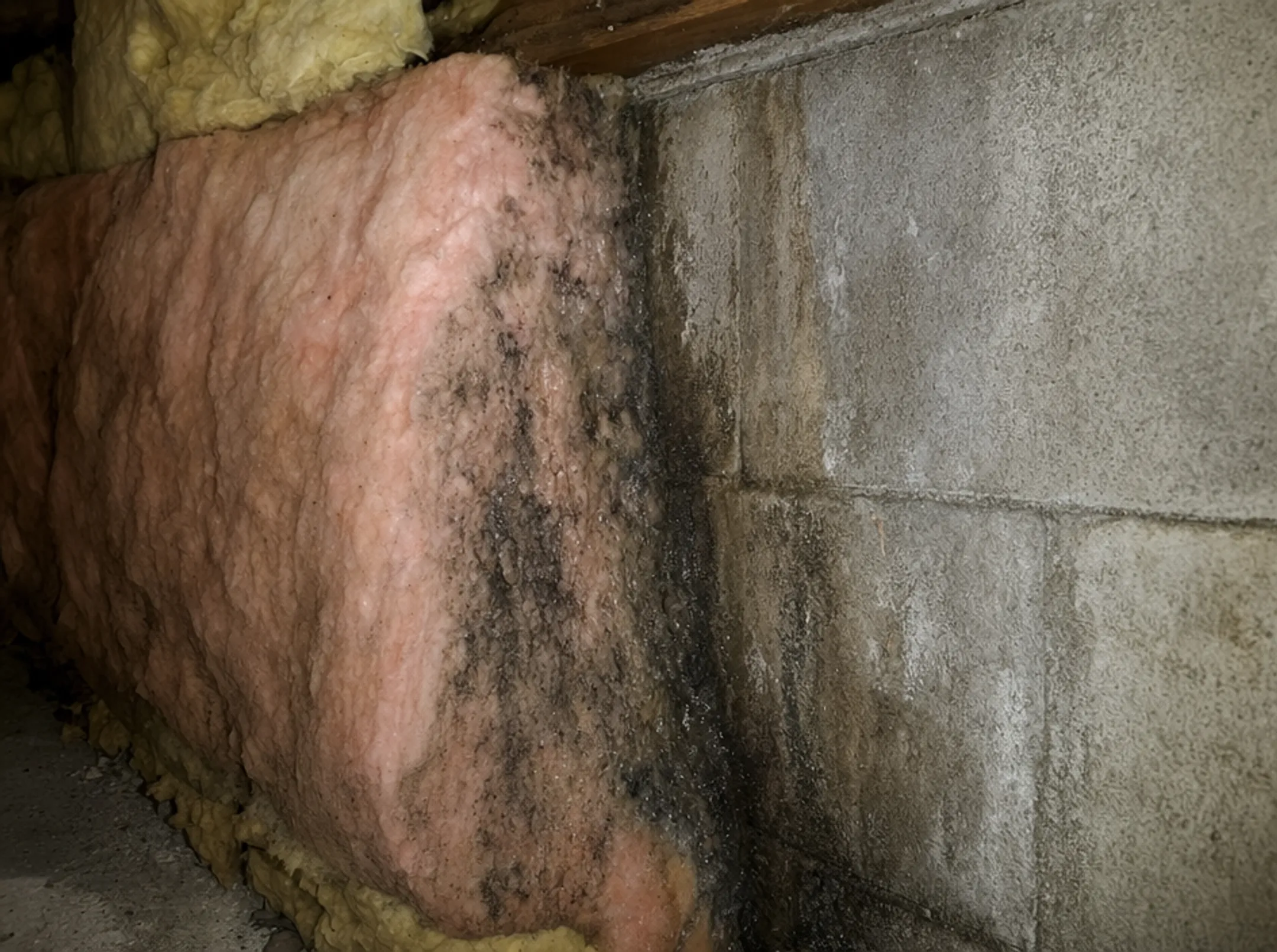

- Fiberglass against bare concrete — absorbs condensation and can breed hidden mold within one to three years
- Poly vapor barrier on the interior side — traps moisture between the barrier and the cold concrete instead of letting it dry inward
- Skipping rim joist insulation — the leakiest part of the building envelope; skipping it undercuts much of what your wall insulation accomplishes
- Untaped foam seams — allows air leakage that reduces your effective R-value
If condensation shows up after installation, check three things first: untaped seams, foam that's too thin for your climate zone, or an accidental vapor barrier trapping moisture behind it. If moisture keeps coming back, have an insulation contractor find the source before you rework the walls.
Alternatives to Insulating Basement Walls
Not every basement needs full wall insulation. These alternatives fit when a full DIY wall assembly isn't the right call—based on how you use the space, your budget, and your foundation type:
Ceiling Insulation Only
Better suited to unfinished basements used only for storage or mechanical equipment. You won't condition the space, so wall condensation goes unaddressed and the basement stays cold.
Rim Joist Only
A solid option for tight budgets looking for quick energy savings. You'll cut some heat loss at the rim, but the walls stay uninsulated and still prone to condensation.
Professional Closed-Cell Spray Foam Assembly
The right call for stone or rubble foundations, or walls too irregular for rigid board to seal properly. It typically costs more than a DIY rigid foam and stud approach, but it solves problems DIY methods can't on uneven surfaces.
If you're weighing spray foam against a DIY project, comparing quotes helps clarify the real cost gap for your specific basement. TrustPatrick connects homeowners with up to three background-checked contractors so you can compare estimates side by side before deciding.
Frequently Asked Questions
What is the best insulation for basement walls?
Rigid XPS foam board against concrete works well for most DIY homeowners. Closed-cell spray foam is the premium option, especially for irregular or stone walls where rigid board won't seal properly.
What should the R-value be for basement walls?
The 2021 IRC sets minimums from R-5 continuous insulation in Zone 3 up to R-15 continuous in Zones 5-8. Confirm the exact requirement with your local building department.
What is the correct way to insulate basement walls?
Verify the wall is dry, install rigid foam against the concrete with taped seams, frame a stud wall in front of it, and finish with drywall. Skip the poly vapor barrier entirely.
Can I use fiberglass batts in my basement?
Not directly against concrete — it absorbs moisture and can mold. Fiberglass is fine in a framed stud cavity, as long as it sits behind a continuous rigid foam layer.
Do I need a vapor barrier in my basement?
No. A poly vapor barrier can trap moisture against the concrete. The foam layer itself acts as an appropriate vapor retarder when properly selected and sealed.
How much does it cost to insulate basement walls?
DIY rigid foam typically runs about $0.25-$3 per square foot, or roughly $1,000-$5,000 for a full basement. Professional spray foam for a 1,000-square-foot basement usually costs $2,400-$8,400 installed.
